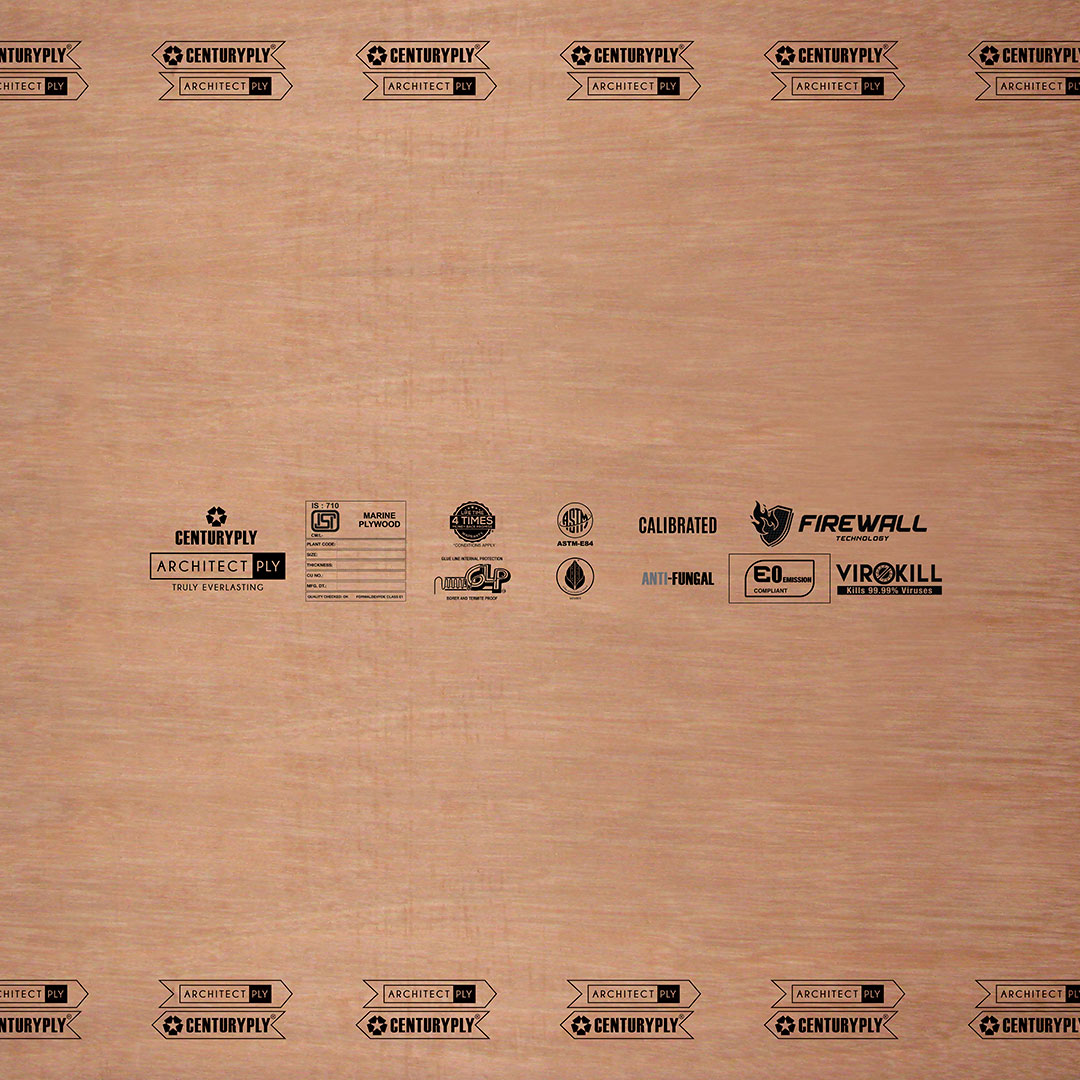

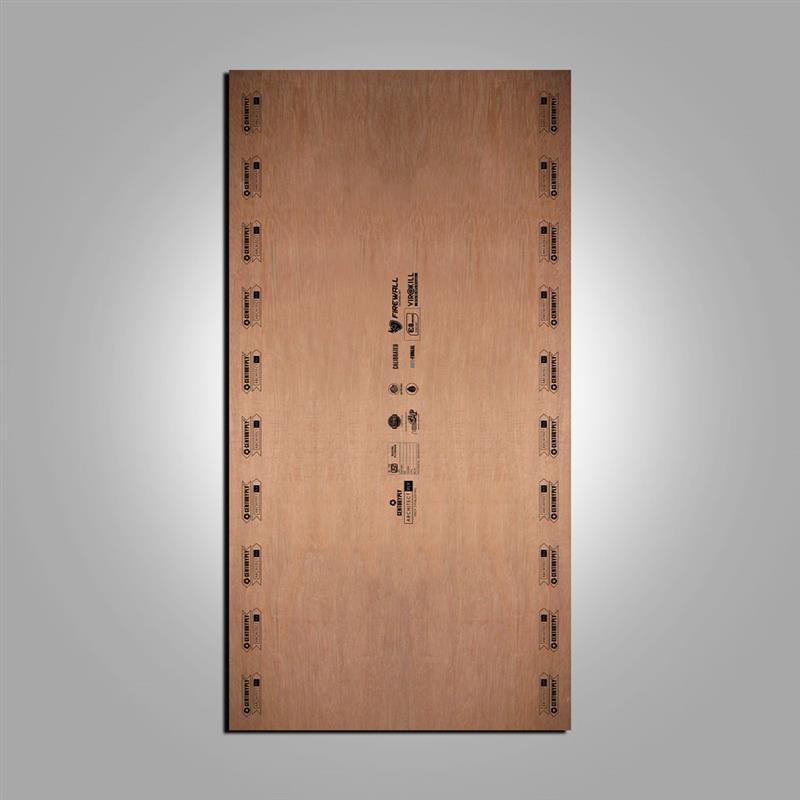

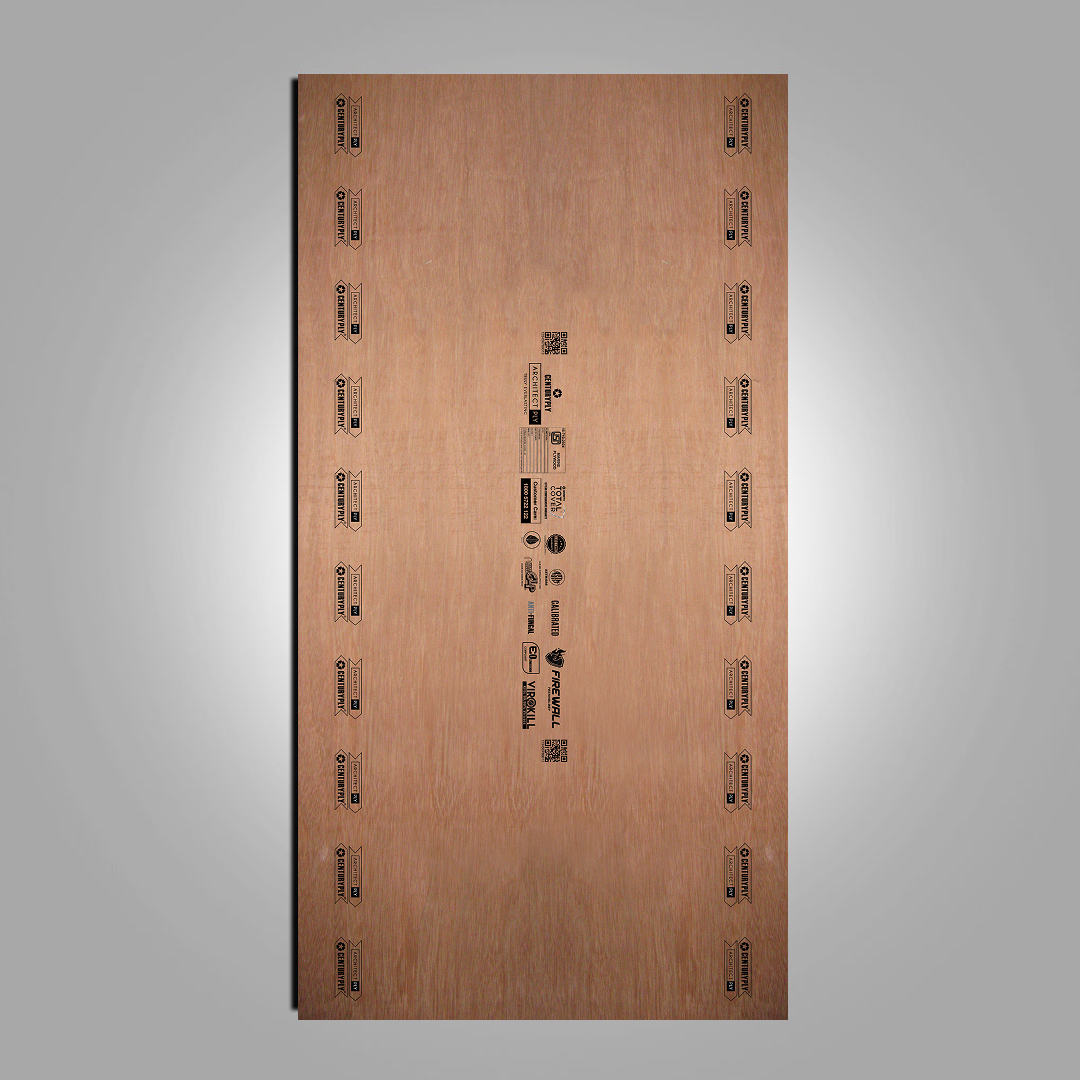

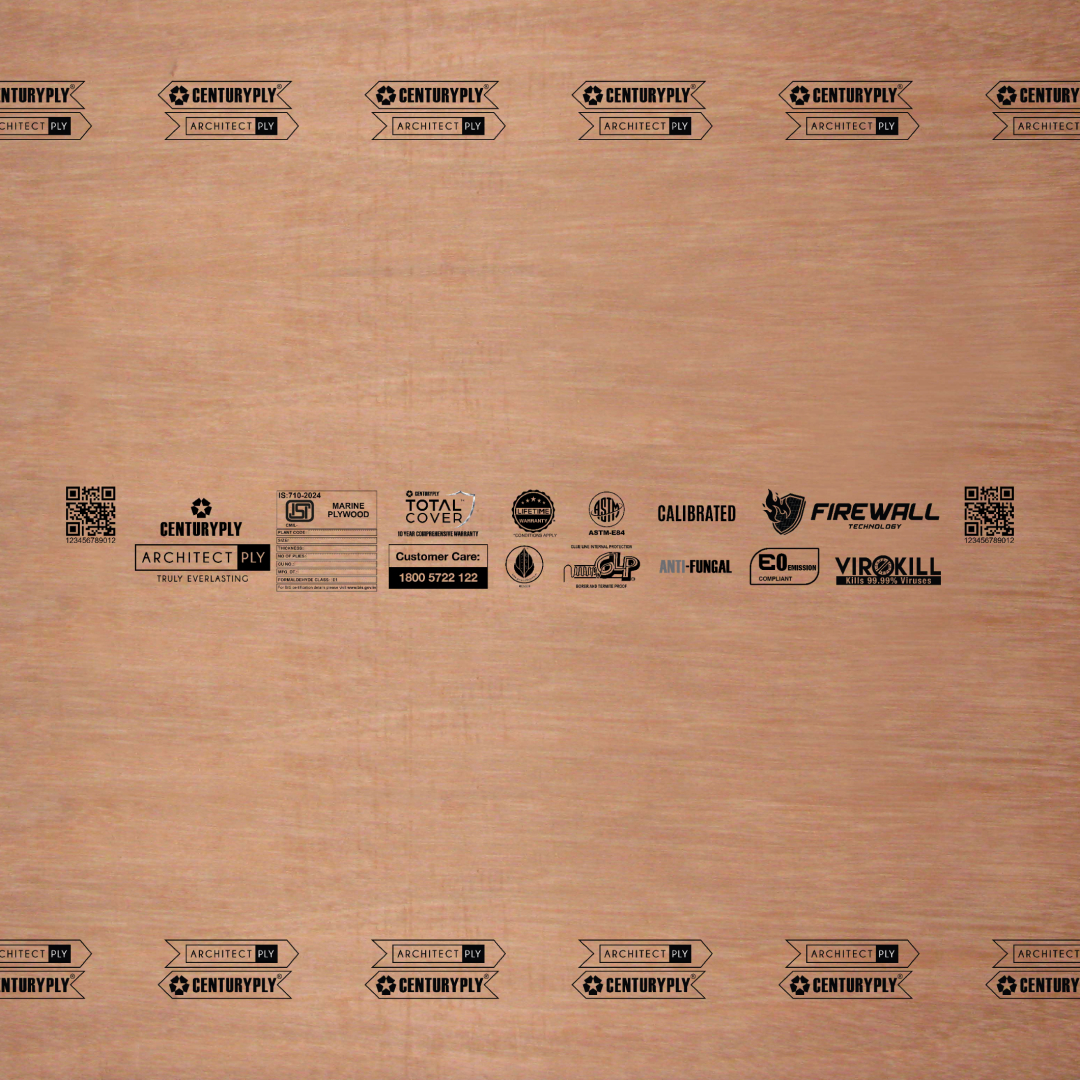

Architect Ply
Architect Ply
WaterproofLUXURY

Architect Ply by CenturyPly is a premium BWP-grade plywood with advanced Firewall and ViroKill technology. It is borer and termite-proof, ensuring long-lasting durability with superior GLP technology. Backed by a lifetime warranty, it offers unmatched quality and reliability. Plus, it comes with a remarkable four-times money-back promise.

Lifetime Warranty




Specifications
Thickness:
4 mm6 mm9 mm12 mm16 mm19 mm25 mm
Key USPsWhere Innovation Meets Quality
Technical Specifications
Product Specifications
 PropertiesDetails

Adhesive.svgAdhesiveBWP grade synthetic resin
Gap, Split, Overlap, Warp.svgGap, Split, Overlap, WarpNegligible
Moisture Content (%).svgMoisture Content (%)8 - 12
Glue Shear Strength (GSS)(N).svgGlue Shear Strength (GSS)(N)>1450
GSS Wet Test (N).svgGSS Wet Test (N)> 1200
GSS Mycological Test (N).svgGSS Mycological Test (N)> 1200
Specific Gravity.svgSpecific GravityApprox. 0.75
Water Absorption (%).svgWater Absorption (%)< 5
Warranty.svgWarrantyComes with a Lifetime Warranty
Pre-pressing.svgPre-pressingFlat panel/balanced surface
Face Thickness.svgFace ThicknessThicker face
Veneer to Veneer Ratio.svgVeneer to Veneer RatioAs per standards
Preservative Treatment.svgPreservative TreatmentTwo Tier Treatment:
1. Glue Line protection (GLP)
2. Finished panels are treated with ACC (Acid Copperchrome Compound)
Static Bending Strength.svgStatic Bending Strength (N/mm2)Modulus of rupture (MOR):
Along the grain: >60
Across the grain: >50

Modulus of elasticity (MOE):
Along the grain: >8000
Across the grain: >5000
 Name of TestResults of CenturyPly Products with Firewall TechnologyTime Expected as per IS under Test Condition

Flammability.svgFlammability sMore than 30 minutesfor a 19mm thick ply should be a minimum of 30 min
Rate of Burning.svgRate of BurningMore than 30 minutesfor a 19mm thick ply should be min 20 minutes
Flame Penetration.svgFlame PenetrationGreater than 3 times the thickness of ply in minutesMinimum of 2.5 times the thickness of ply in minutes
Flame Spread Index.svgFlame Spread IndexFlame Spread Index- 12Standard 0-25 for Class A
Flame Spread Index-1.svgSmoke Developed IndexSmoke development index- 155Standard 450 for Class A
